The ultimate all-in-one camper conversion module
-
The Ready Camper module is 1120mm at the base and should fit between the wheel arches of most van models including Toyota Hiace, Nissan Caravan, Mazda Bongo, Mitsubishi L300, Mercedes Benz Vito, Hyundai iLoad, Ford Econovan and others.
-
The Ready Camper module is preassembled in two main sections that need to be lifted into the back of your van and fastened. No fancy tools required.
-

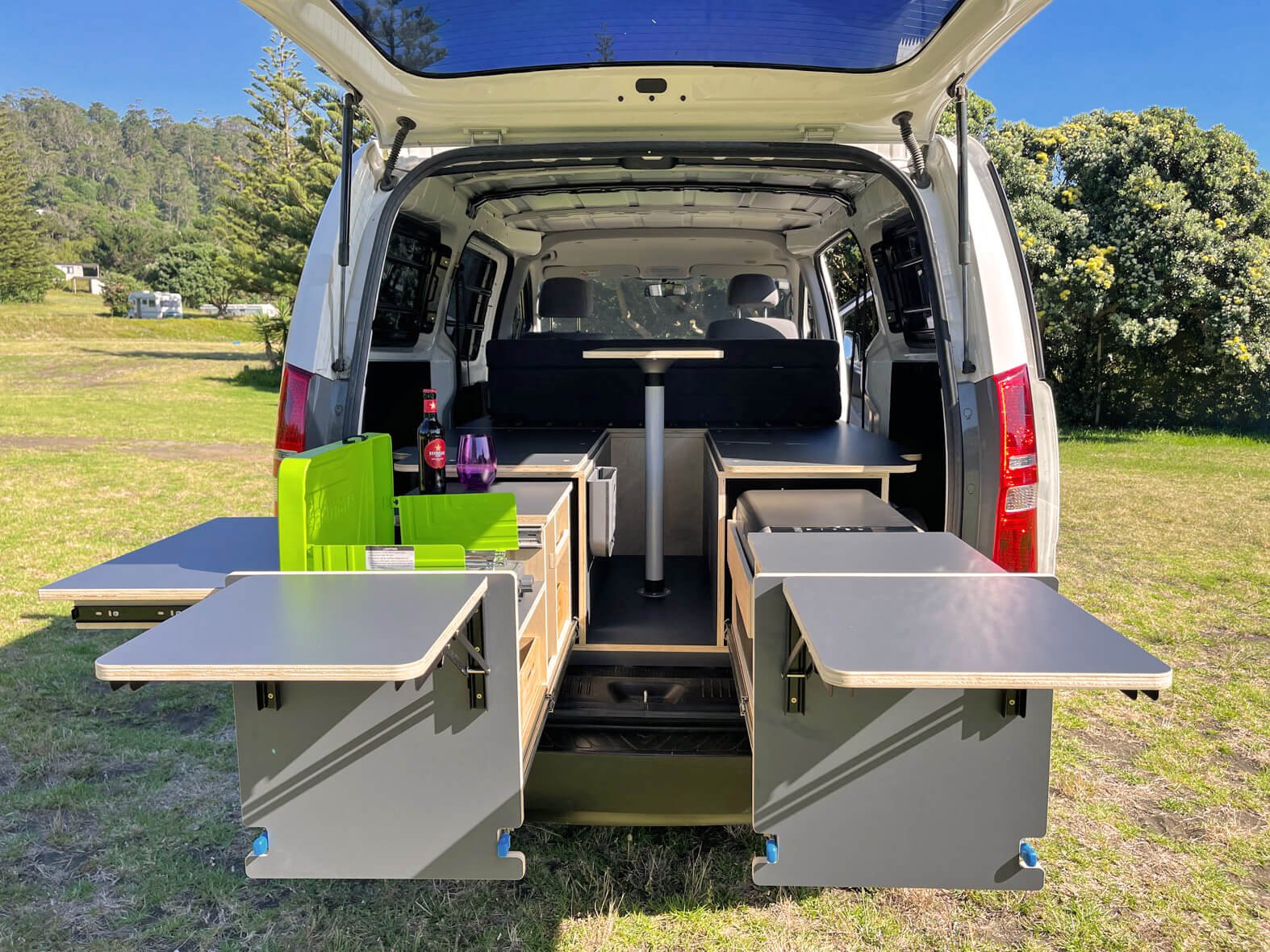

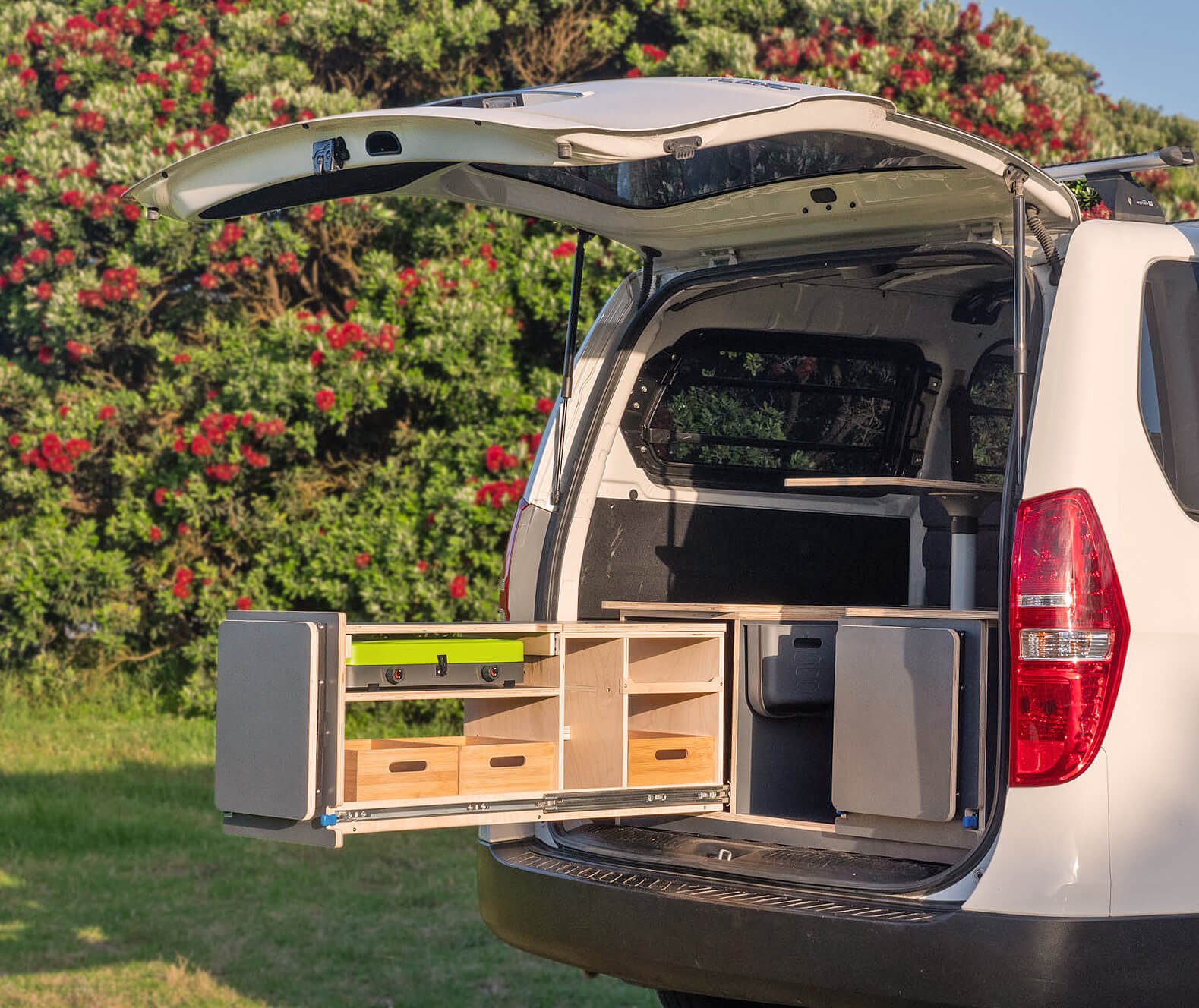

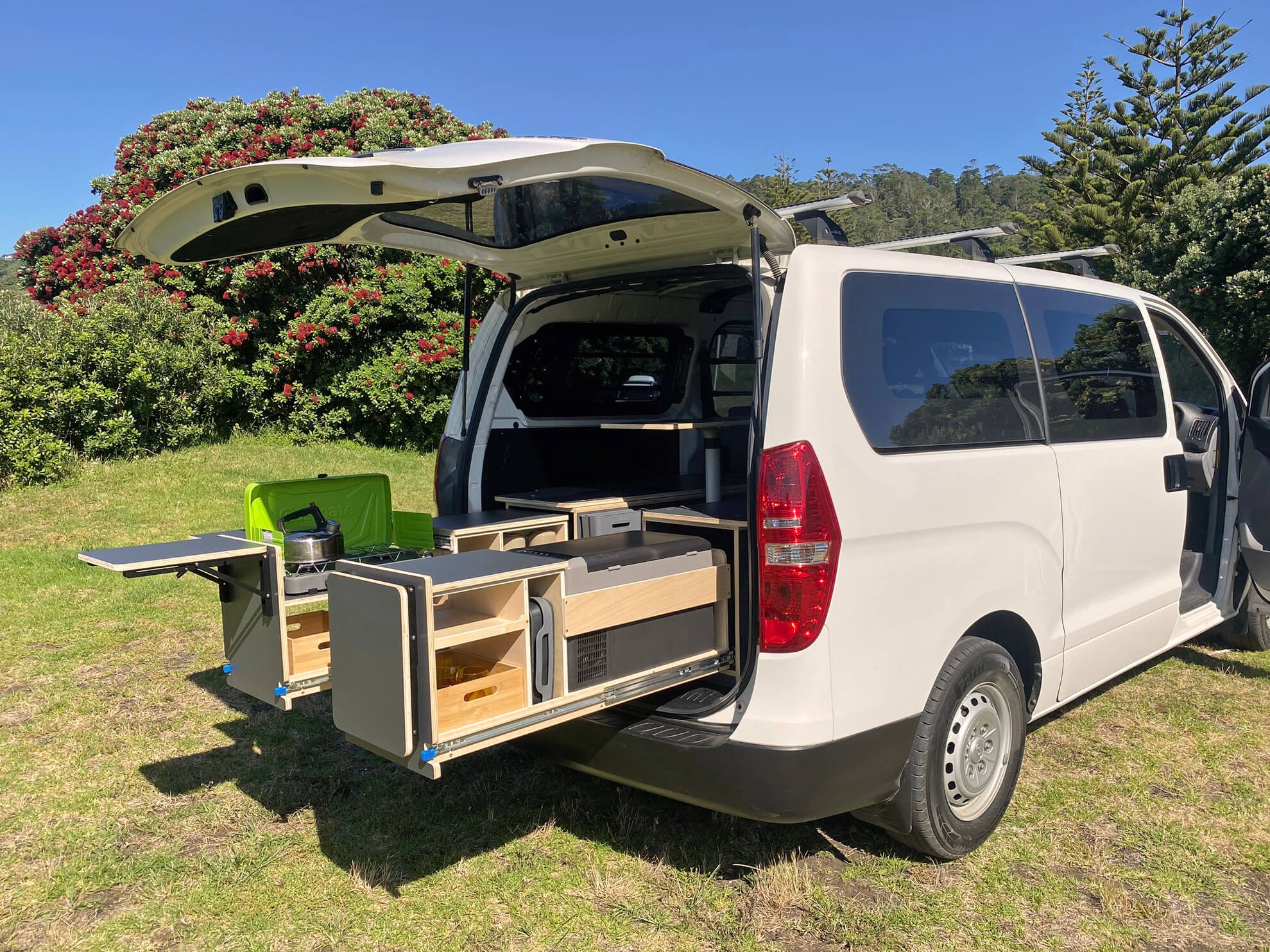

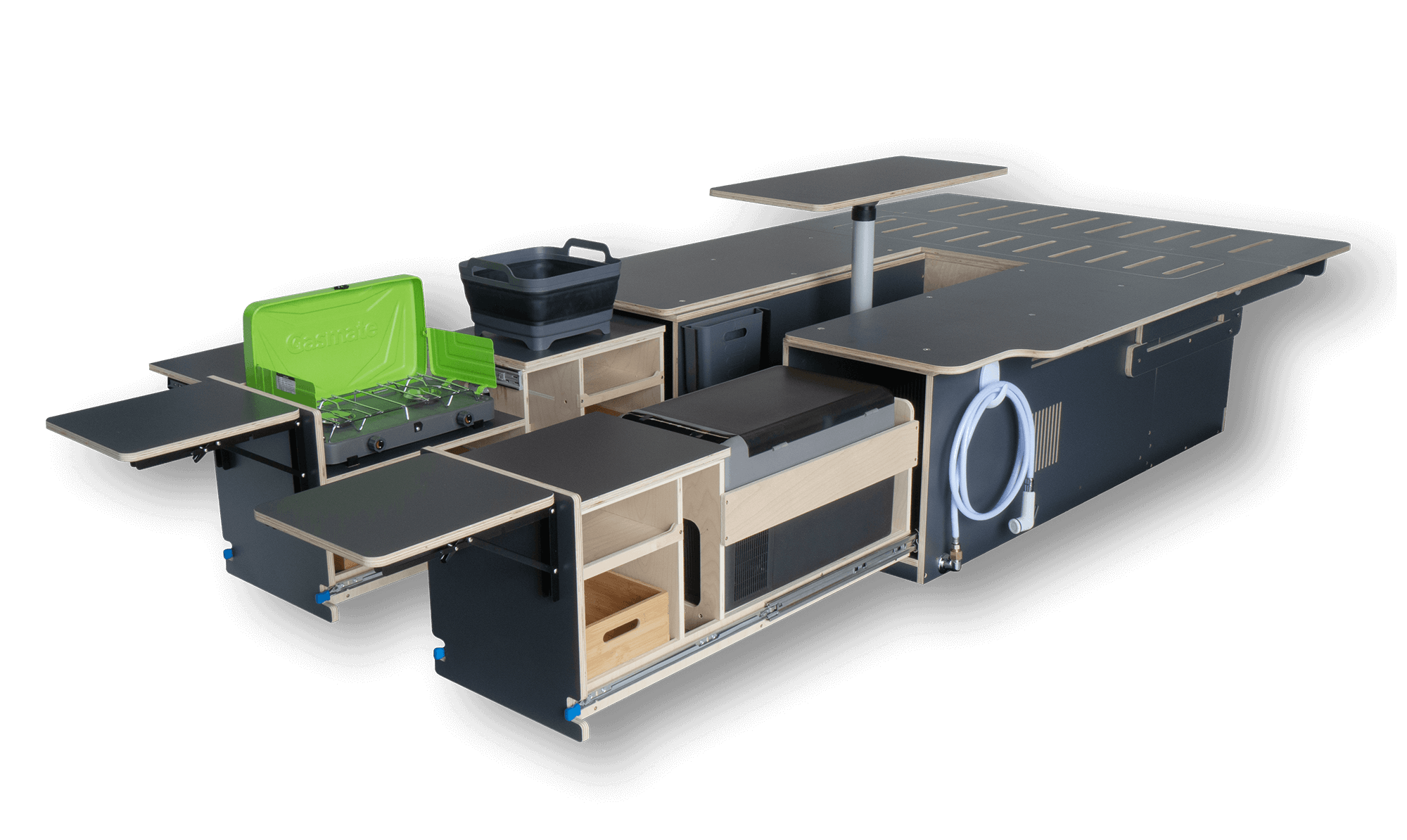

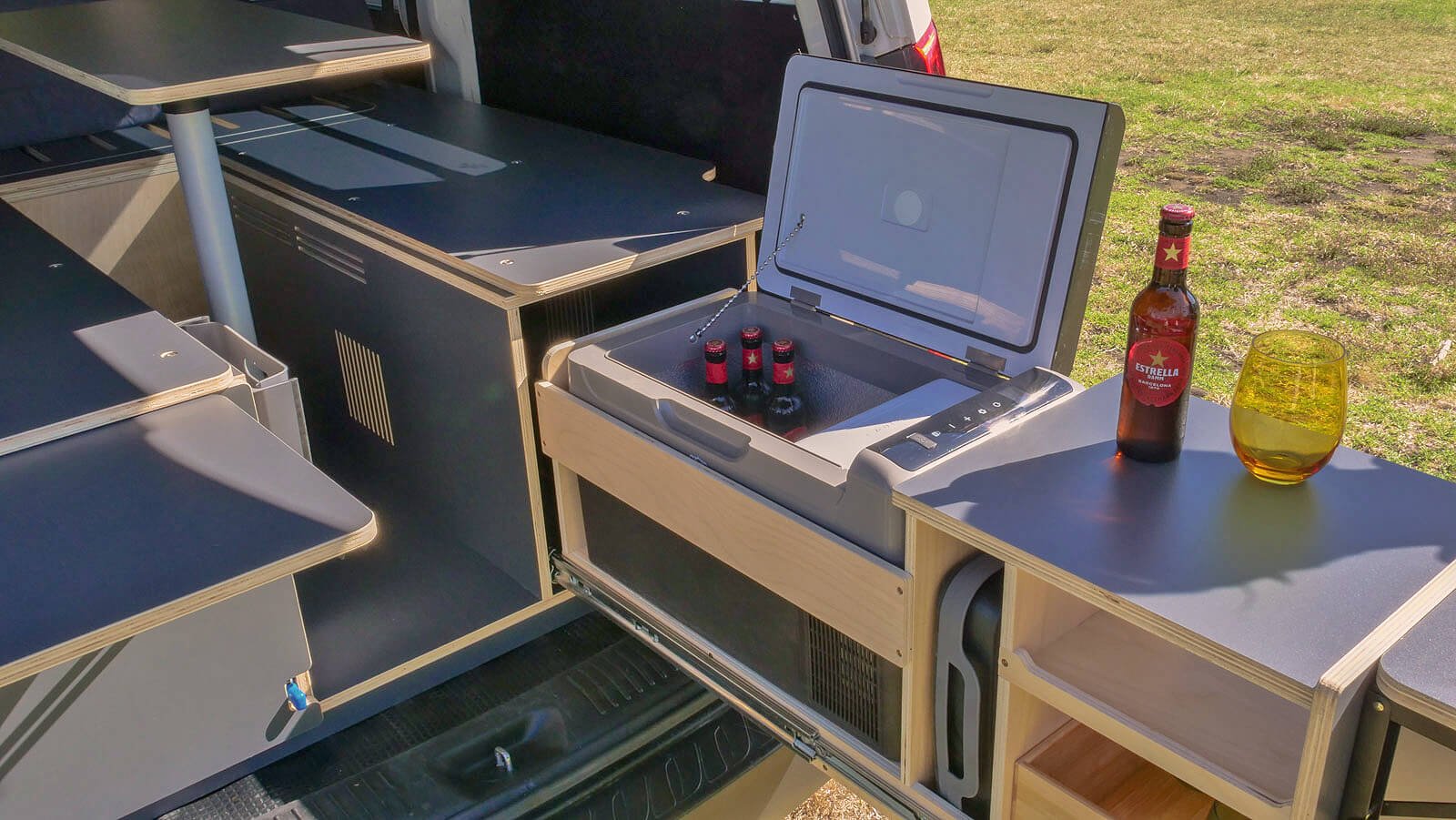

The kitchen set-up with gas cooker, integrated 22L fridge, fold out wash sink and supplies storage lives in the module and can be extended on its heavy-duty runners when you’re ready to cook.
-

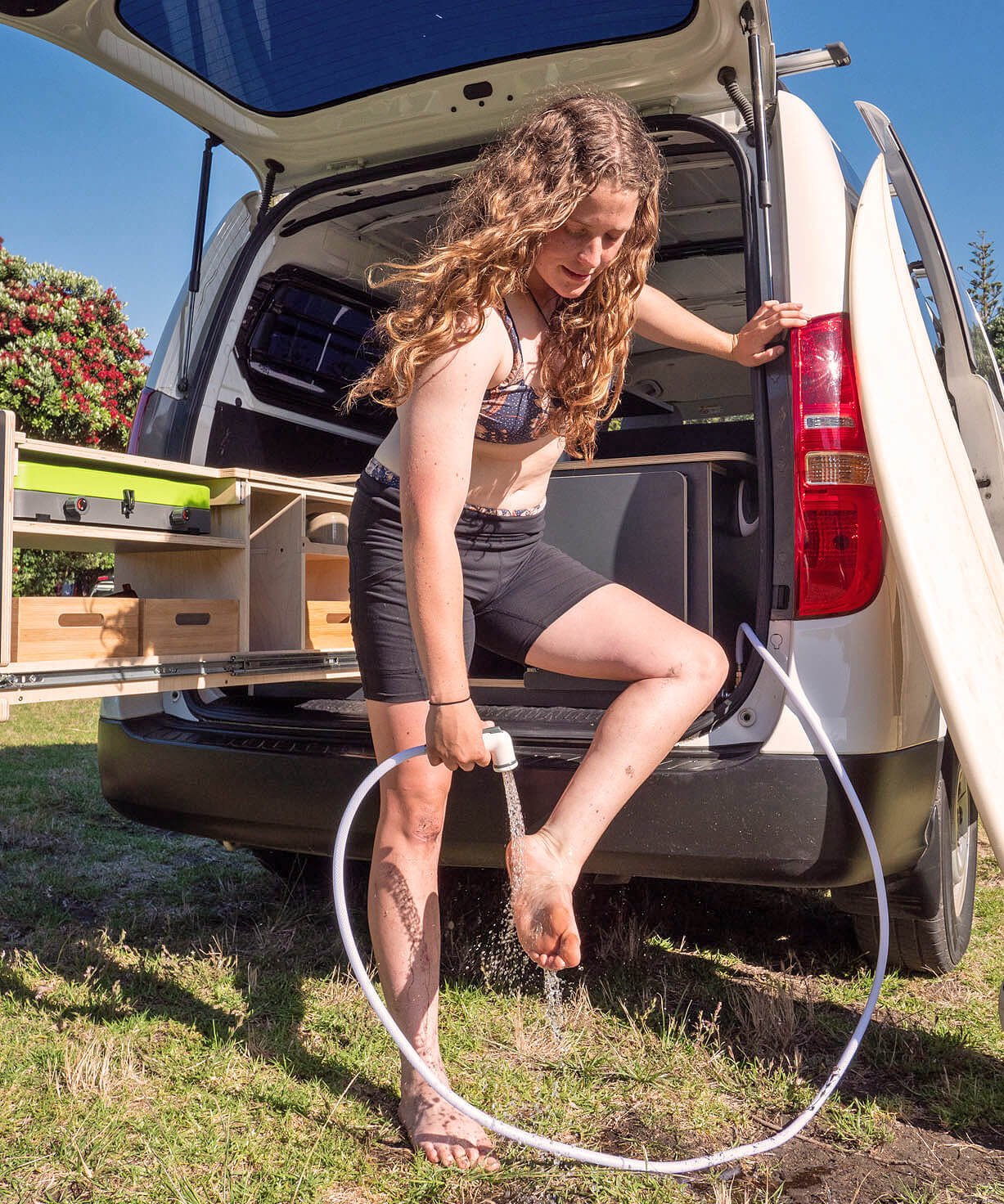

The self-starting water pump and water tanks means you’re all set to shower and wash the dishes—at the same time, if you fancy!
-

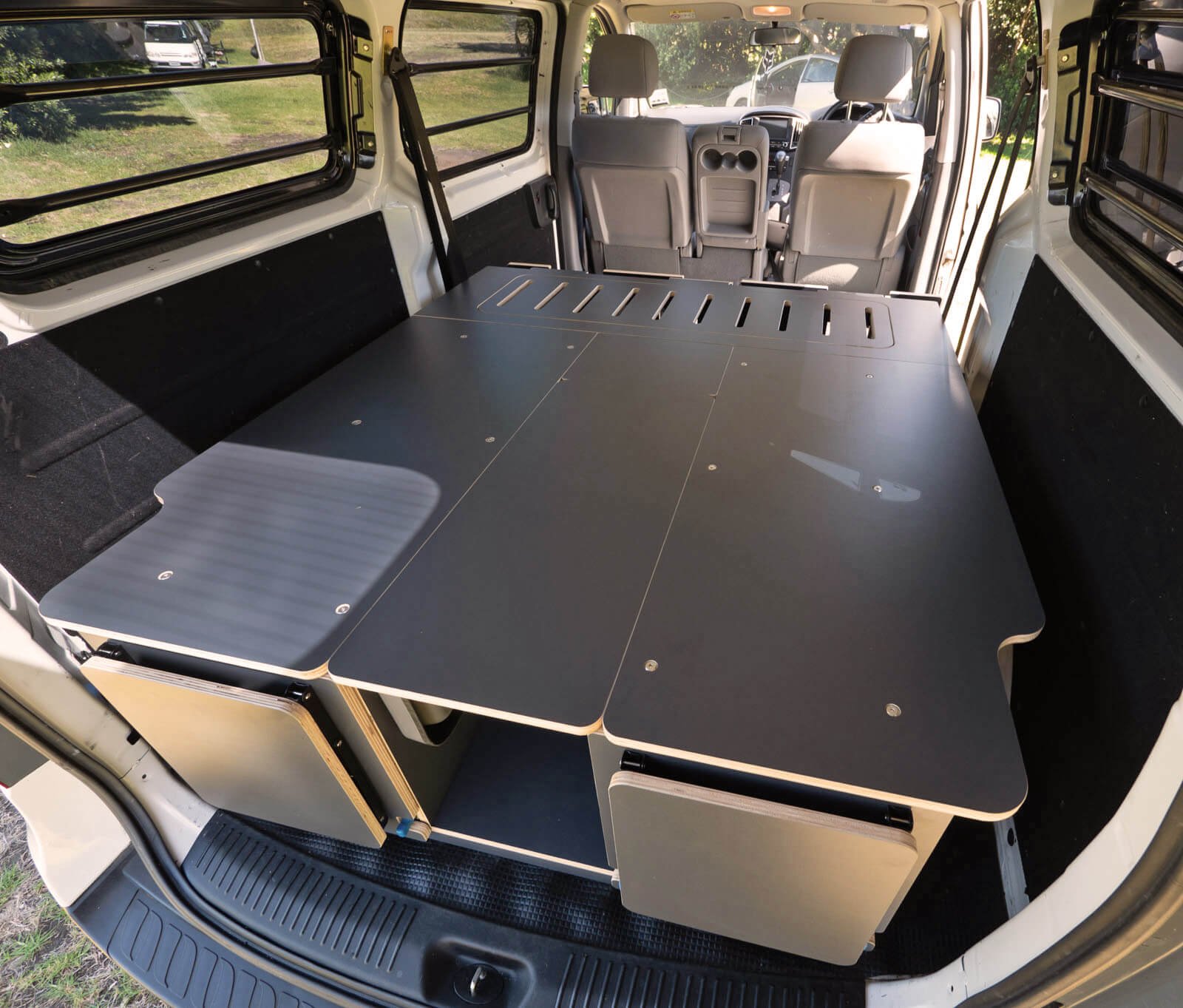

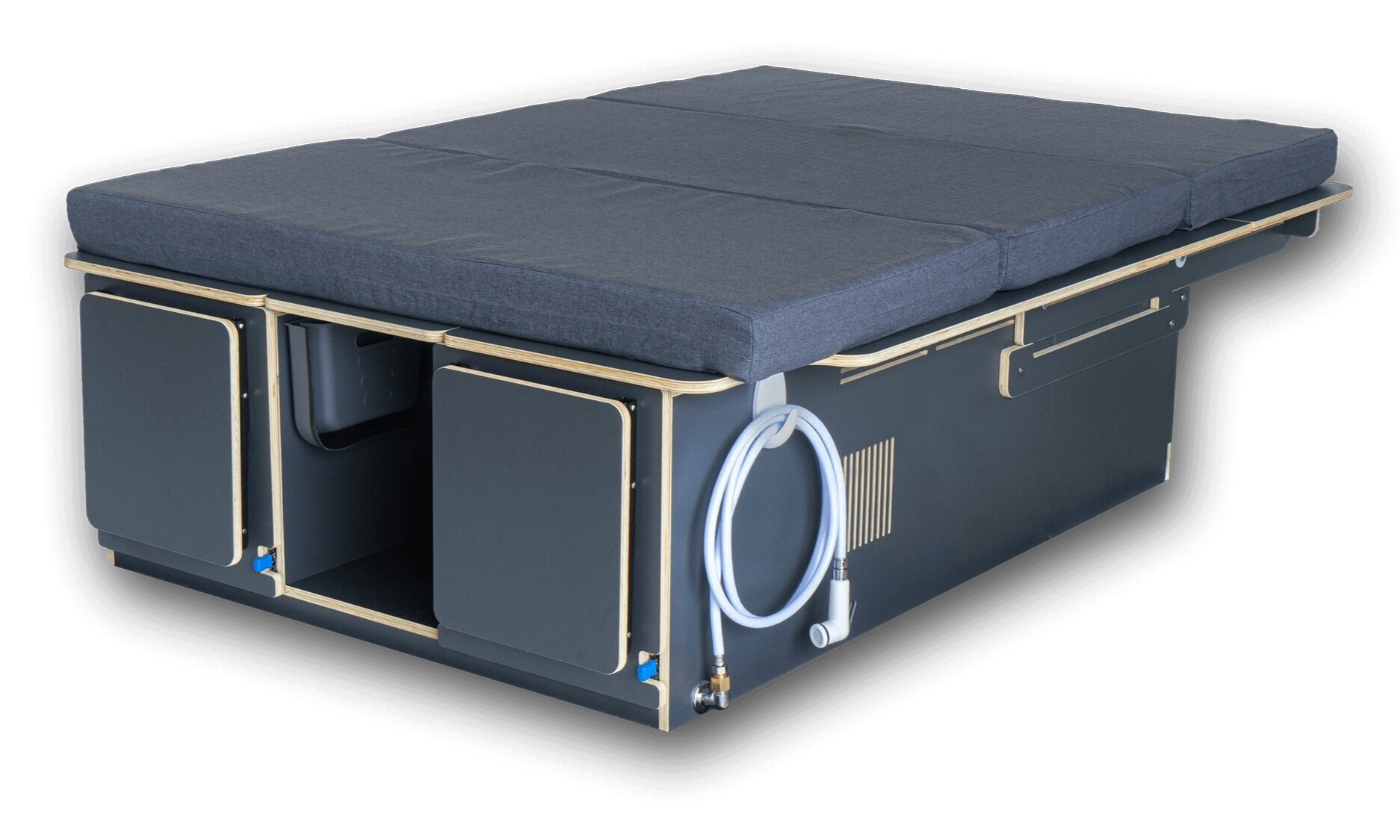

Get from playing Monopoly Deal at the table and into bed in just three minutes. We’ve included a comfy, trifold mattress, you bring the sheets.
-
Stay connected and capture every moment with built-in charging ports, ensuring your devices are always powered and ready for your next adventure.
-
Our ready camper modules are crafted with durable, high-quality materials and designed for longevity to provide you with a reliable home on wheels for all your adventures.
-
Not an exhaustive list, but to name a common handful the module will fit in:
Toyota Hiace
Nissan Caravan
Mazda Bongo
Mitsubishi L300
Mercedes Benz Vito
Hyundai iLoad
Ford Econovan
-

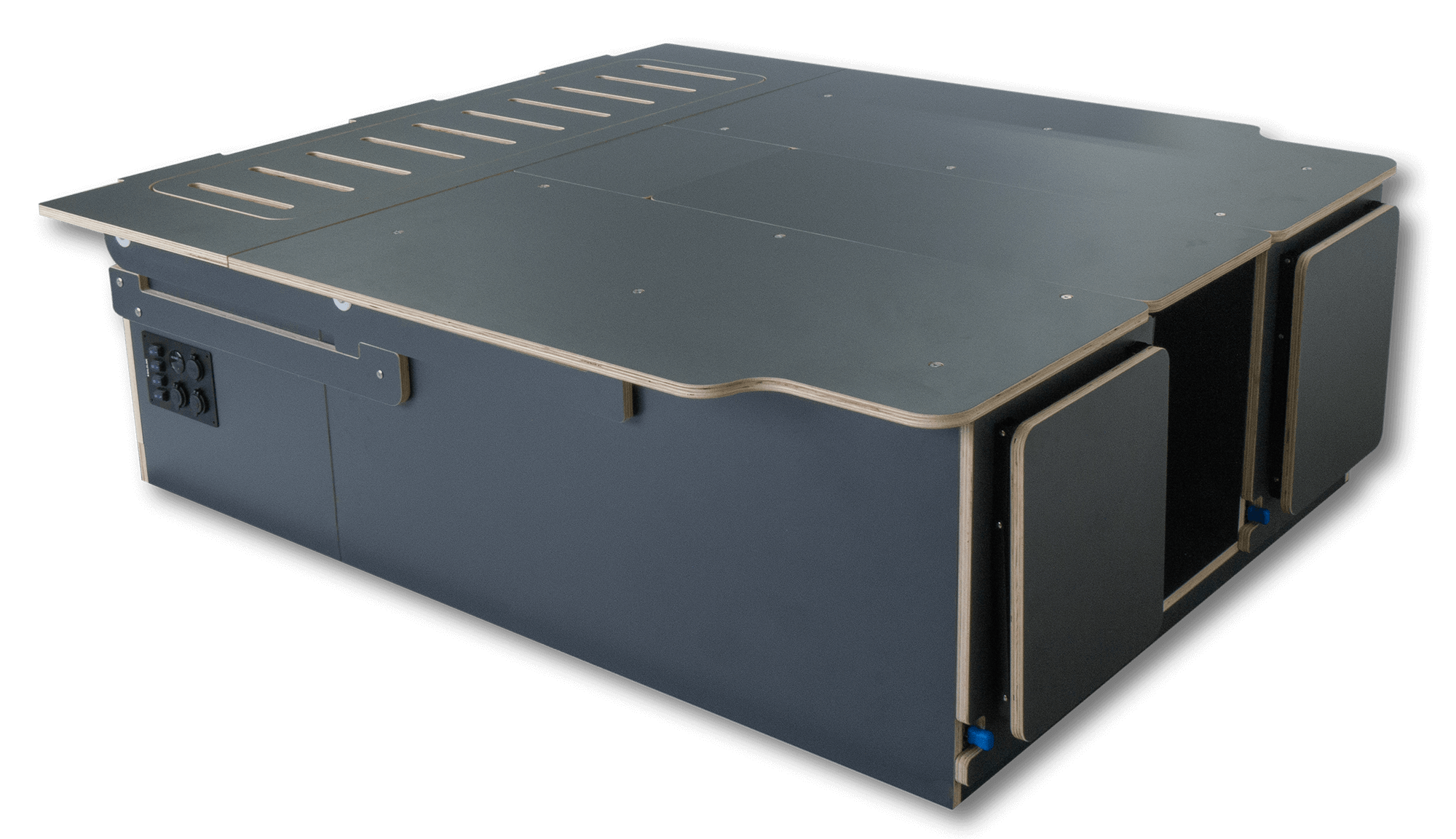

The module is a fixed width of 1120mm at the base and should fit between the wheel arches of most van models. The overall footprint of the top of the unit is 1400mm x 2000mm.
-
The module comes as two units which bolt together once inside the van. The top “wings” are removable so the module can slide in from the rear of the vehicle. The drawers are removable to make handling easier.
-
Ready Camper is installed be using 2 x hex keys and there are 18 bolts in total, both of which are included with the module.
-
If you’re able to bring your van to our workshop in Kumeu, Auckland, we are happy to assist with loading the module into your van however we won’t take responsibility for fastening the unit to the base of the van or drilling any holes required.
-
The Ready Camper module is available to view by appointment at or workshop in Kumeu, Auckland. To schedule a viewing, get in touch via our contact form below and we can arrange a time.
We’re happy to help measure your van to see if the module will be a good fit.
-
Ready Camper modules can be shipped within New Zealand at an additional cost. They will need to be transported on a pallet and delivered to a commercial address.
At this stage the module is only available prefabricated however we will look at supplying a cheaper flat-pack version down the line.
FAQ’s
-
Not permanent at all. Although it does require some effort to install and uninstall the module it is by no means a permanent fixture in the van—so if you’re a tradesperson or don’t wish to use your van as a camper all year round then the module can be removed and stored in your garage until your next holiday.
-
We typically hold stock of the units flat-packed and ready to assemble so lead time is 3-5 business days from payment.
-
The power supply isn’t included with the module as typically people prefer to run their own set ups. We supply a 12V 15 amp cable wired to the switch panel, you can either wire this to a battery in your vehicle or an existing solar set up.
-
We recommend buying a backup 25L water tank for longer stays where you won’t have access to water. Curtains/ mosquito nets are essential to keep the van cool in summer and allow plenty of ventilation.
Having a fire extinguisher and first aid kit is important to have on hand in an emergency.
Finally, make sure you have plenty of power to run the fridge and other accessories, this could be charged using a solar system or alternatively a lithium ion battery which charges using the vehicle's alternator. If you wish to charge appliances which require 240V then an inverter is required to step up the voltage from 12V to 240V.
-
Just the overall functionality of the module—simple things like being able to use the kitchen or access the drawers whilst the bed is still in its made position has proven to be handy!
-
Ready Camper has been carefully designed and developed by Cameron Holder (industrial designer and CNC master) of Secandi and Andrew Turney (model maker and workshop wizard) of Gyro Constructivists.
We typically do contract CNC machining for a variety of industries. Having also done the odd cabinet-making job here and there, we figured this would be an interesting challenge to explore how we can utilise the CNC machine to create a product which makes the most out of such a small space?
As we delved into our market research we noticed there weren’t many products that could be easily fitted into a van and many existing designs were for specific van models limiting people’s choices when it came to purchasing a van. Seeing as people are so time poor now, we wanted to take the hassle out of fitting out a van so they can get on the road and start enjoying their holiday.
Buy or view a Ready Camper
Buy a Ready Camper
To purchase a Ready Camper, please get in touch via our contact form. We will double check the dimensions of your van to ensure the module will be a suitable fit.
Current pricing is $7990 including GST.
Book Viewing
You’re welcome to visit our Kumeu (Auckland) workshop by appointment to see the Ready Camper module in the flesh. Please flick us a message via our contact form, and we can arrange a time that suits.
Contact us
If you have questions about Ready Camper, or would like to visit our workshop, contact me as below:
reply@gyro.co.nz
Andrew 021 289 1993
